DIMENSIONS AND WEIGHTS
TWO CORE

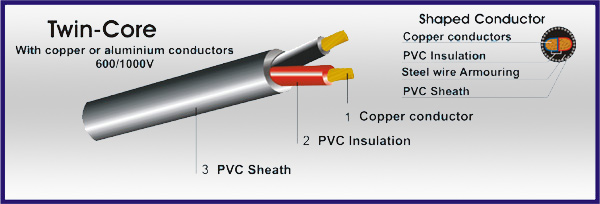

STRANDED COPPER CONDUCTORS 600/1000V
Unarmoured and armoured , PVC oversheatehed cables



Nominal Area of Conductor Thickness of Insulation Unarmoured Approximate overall diameter Unarmoured Approximate cable weight  Armour wire diameter Armoured Approximate overall diameter Armoured Approximate cable weight
mm sq mm   mm kg/km  mm mm kg/km
1.5*
2.5*
4*

6*
10*
16*

25**
35**
50**

70**
95**
120**

150**
185**
240**

300**
400**

0.6
0.7
0.8

0.8
1.0
1.0

1.2
1.2
1.4

1.4
1.6
1.6

1.8
2.0
2.2

2.4
2.6

----
----
----

----
----
18.6

18.4
20.1
22.8

25.5
29.3
31.8

35.1
39.1
43.9

48.7
54.2

----
----
----

----
----
540

690
950
1260

1700
2310
2880

3520
4390
5760

7160
9040

0.90
0.90
0.90

0.90
1.25
1.25

1.60
1.60
1.60

1.60
2.00
2.00

2.00
2.50
2.50

2.50
2.50

12.3
13.6
15.1

16.5
20.1
21.9

23.0
24.8
27.8

30.4
35.5
38.0

41.3
46.4
51.2

56.4
61.9

280
350
460

550
880
990

1280
1610
2010

2520
3520
4200

4960
6390
8020

9710
11850


* Circular or compacted circular stranded conductors   ** Shaped stranded conductors
