DIMENSIONS AND WEIGHTS

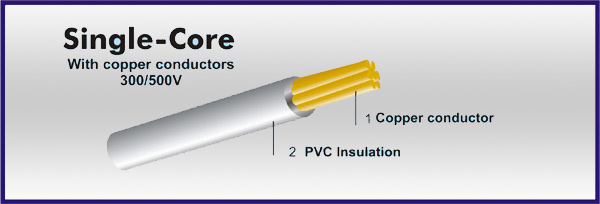

SINGLE CORE PVC-INSULATED NON-SHEATHED CABLES GENERAL PURPOSE 300/500 VOLTS

Plain Annealed Copper Conductor PVC Insulated BSS 6004

TABLE -1(A)



1

 2 3 4 5
Nominal Sectional Area of Conductor Number and nominal size of wire (s) Redial Thickness of Insulation Mean Overall diameter (upper limit) Approx. Net weight per 90 meters
mm mm mm mm kg

1.5
1.5
2.5
4
6
10
16
1/1.38
7/0.50
1/1.78
7/0.85
7/1.04
7/1.35
7/1.70
0.7
0.7
0.8
0.8
0.8
1.0
1.0
3.3
3.5
3.9
4.8
5.4
6.8
8.0
1.89
1.89
2.97
4.59
6.39
10.80
10.20
